AEON MIRA 9 60W/80W/100W/RF30W/RF60W CO2 Laser Engraving Cutting Machine

Technical Specifications At A Glance

• Working Area: 900 x 600mm

• Laser Power Options: 60W 80W 100W RF30W RF50W

• Laser Type: CO2 sealed glass tube

• Resolution: 1000 DPI

• Max Engraving Speed: 1200mm per second

• Acceleration Speed: 5G

• Z Axis Height: 150mm adjustable

• Cooling System: Built-in water cooler with fan

• Worktable: Honeycomb and blade

• Input Voltage: 110V or 220V

• Operating Temperature: 0 to 45°C

• Compatible Systems: Windows Mac OS Linux

What Materials Can You Cut and Engrave?

The AEON MIRA 9 is suitable for many non-metal materials, including:

• Wood and plywood

• Acrylic and plastic

• Leather and fabric

• Rubber and foam

• Paper and cardboard

• Bamboo and cork

It can cut materials up to 10 mm thick depending on type and laser power. This makes it useful for signage, crafts, gifts, packaging, and branding products.

Why Is AEON MIRA 9 Faster Than Other Desktop Laser Machines?

Speed is one of the biggest advantages of the AEON MIRA 9. It uses a customized stepper motor premium Taiwan linear guide rails and Japanese bearings. This advanced motion system allows the machine to reach a maximum engraving speed of up to 1200mm per second with an acceleration speed of 5G.

This means jobs are completed two to three times faster compared to standard desktop laser machines. Faster engraving helps businesses save time increase daily output and reduce waiting time for customers. If speed matters for your production workflow the MIRA 9 is a strong choice.

How Does Clean Pack Technology Reduce Maintenance?

The AEON MIRA 9 features Clean Pack Technology which protects the linear guide rails from dust and debris. Dust is a major reason for wear and maintenance issues in laser machines.

By sealing and safeguarding critical motion parts this design helps reduce cleaning time extends machine life and ensures consistent engraving quality. This feature is especially useful in busy workshops where the machine is used daily.

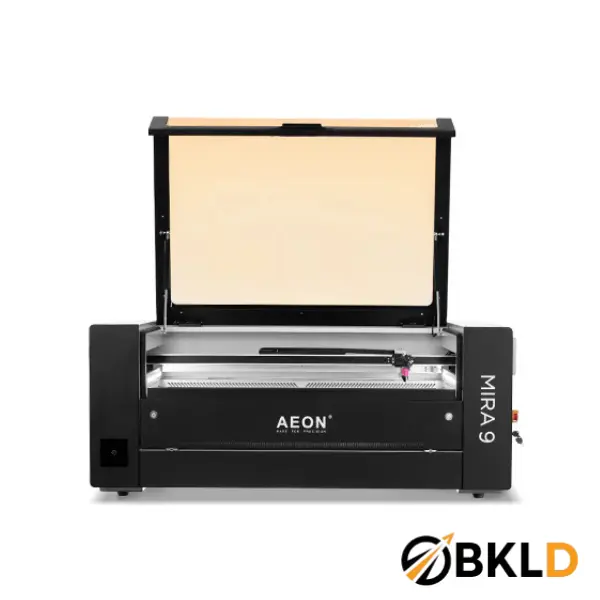

What Makes The All-In-One Design Easy To Use?

The MIRA 9 is built with a compact all-in-one design. All core components are integrated inside the machine body. There is no need for external water chillers or additional accessories.

You simply place the machine on a table plug it in and start working. This makes installation simple and saves space. It is ideal for small studios home workshops and businesses that want a clean professional setup.

What Software and Connectivity Options Are Available?

This machine supports multiple design software options. You can use RDWorks for basic designs and LightBurn for advanced features.

If you already work with CorelDraw, AutoCAD, Illustrator, or Photoshop, you can import files directly using plugins. This saves time and improves workflow.

For connectivity, the AEON MIRA 9 offers:

• Wi-Fi

• USB cable

• Ethernet (LAN)

• USB flash drive

It also includes 128 MB internal memory. You can store files and run jobs without keeping the computer connected. This flexibility makes it suitable for both home studios and commercial workshops.

How Flexible Is The Communication System?

The AEON MIRA 9 supports multiple connection options including Wi-Fi USB LAN network cable and USB flash disk. The machine has 128MB buffer memory and an LCD control panel for easy operation.

It also supports offline working mode. If power is interrupted the machine can resume from the stop position after reboot. This feature protects your materials and reduces waste during unexpected power cuts.

How Does The Adjustable Worktable Improve Cutting?

The machine uses a ball screw electric up and down table which is stable and precise. The Z-axis height is 150mm adjustable making it easy to work with thick or tall materials.

The front pass-through door allows longer materials to extend through the machine. This is very useful for signage boards wooden panels and long acrylic sheets.

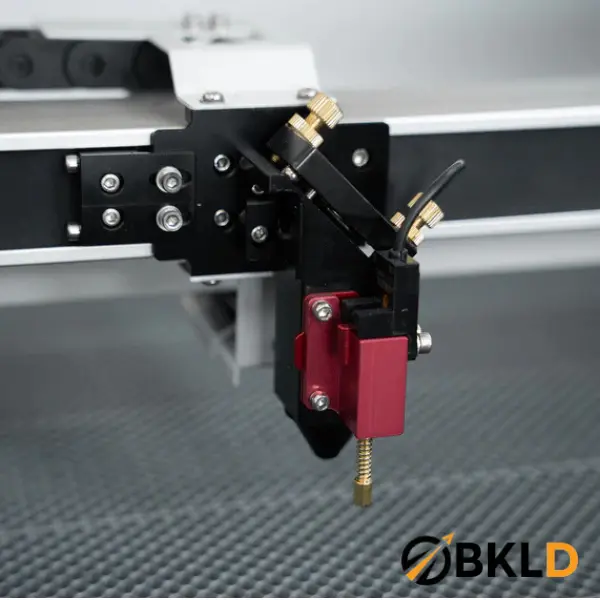

Why Is Autofocus Important For Accuracy?

The AEON MIRA 9 can be equipped with an advanced autofocus system. With one button press the machine automatically finds the correct focus height.

The autofocus device is adjustable and easy to install or replace. This feature improves engraving accuracy saves setup time and helps beginners achieve professional results without manual adjustments.

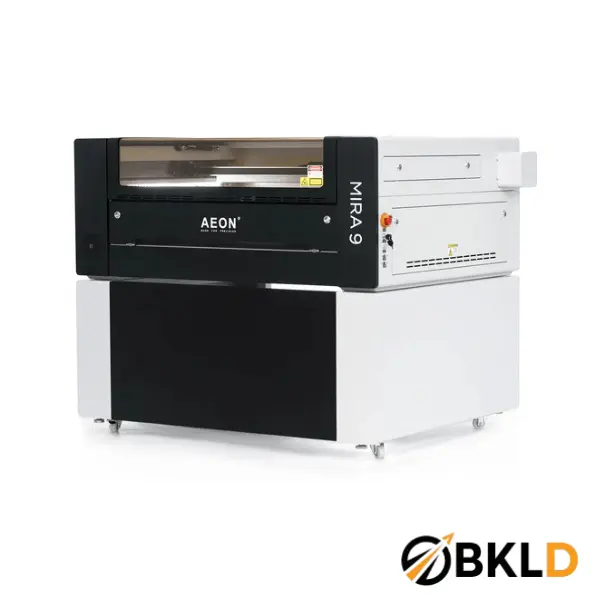

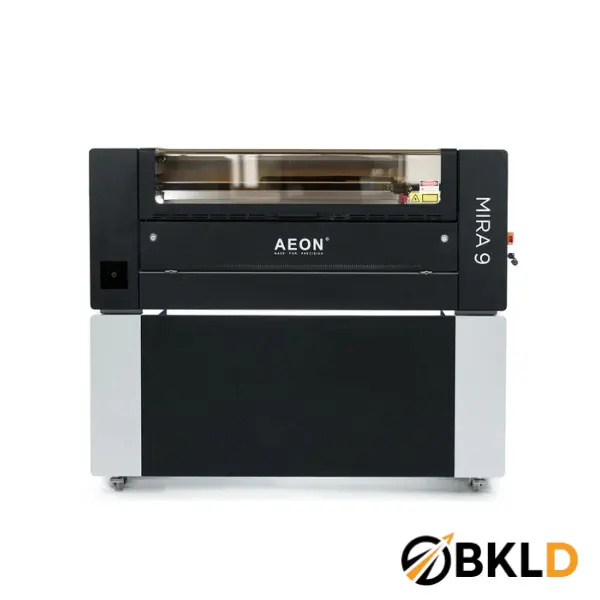

What Makes The Body Strong And Modern?

The machine body is made from thick galvanized steel plates which provide excellent strength and durability. The powder-coated finish gives it a modern premium look that fits well in professional studios and modern homes.

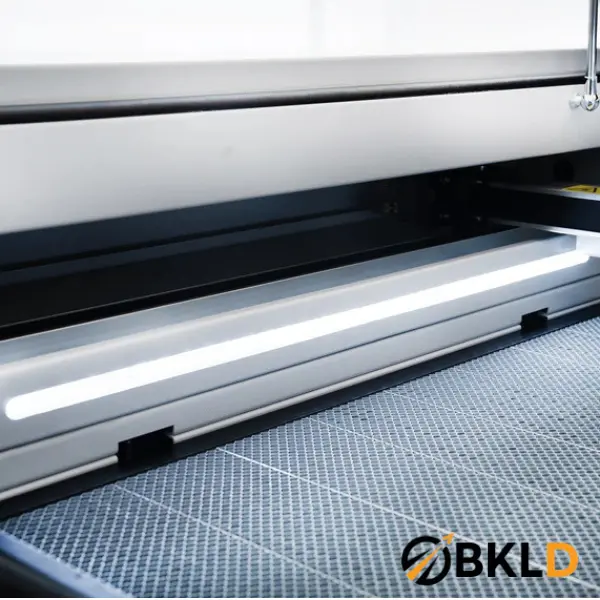

LED interior lighting improves visibility and gives the machine a high-end appearance even in low-light environments.

Is AEON MIRA 9 A Good Choice For Small Businesses?

Yes. The AEON MIRA 9 CO2 Laser Engraving Cutting Machine is a powerful reliable and fast solution for small businesses and professional users. It offers high productivity low maintenance and flexible configuration options.

If you are looking for a desktop laser that delivers commercial-grade performance supports continuous operation and grows with your business the AEON MIRA 9 is a smart long-term investment.
