AEON MIRA 7 60W/80W/RF30W CO2 Laser Cutting Engraving Machine

Technical Specifications at a Glance

• Working Area: 700 × 450mm

• Laser Tube Options: 60W 80W RF30W

• Laser Type: CO2 sealed glass tube

• Z Axis Height: 150mm adjustable

• Resolution: 1000 DPI

• Max Engraving Speed: 1200mm per second

• Acceleration Speed: 5G

• Rated Power: 1200W to 1300W

• Cutting Thickness: 0 to 20mm depending on material

Why Is the AEON MIRA 7 Faster Than Other Desktop Laser Machines?

Speed is one of the biggest advantages of the AEON MIRA 7 laser engraver. It uses a customized stepper motor combined with a premium Taiwan linear guide rail and Japanese bearings. This setup allows the machine to reach a maximum engraving speed of 1200mm per second.

With an acceleration speed of up to 5G the MIRA 7 is two to three times faster than many conventional laser machines on the market. Faster speed means higher productivity. You can complete more jobs in less time without sacrificing quality. This directly improves profit for small businesses.

How Does the Chiller System Improve Continuous Operation?

Unlike regular cooling systems the AEON MIRA 7 uses a professional chiller system. This advanced cooling solution keeps the laser tube at a stable temperature even during long working hours.

The benefit is simple. You get continuous operation without overheating issues. This reduces downtime and extends the life of the laser tube. It is especially useful for commercial users who run the machine for long engraving and cutting sessions.

What Is Clean Pack Technology and Why Does It Matter?

The MIRA 7 features Clean Pack Technology which protects the linear guide rail from dust and debris. Dust is one of the main causes of wear and maintenance problems in laser machines.

By sealing and safeguarding critical components this design reduces maintenance needs and keeps the machine running smoothly. It also ensures better engraving accuracy over time. Your finished products remain clean precise and professional.

How Does the All-In-One Design Benefit Small Businesses?

The all-in-one design of the AEON MIRA 7 makes it extremely user-friendly. All key functions are built into a compact and clean body. There is no need for complicated external setups.

You can place the machine on a table connect the power and start working. This saves space and setup time. It is perfect for small workshops home businesses and studios that need professional performance in a compact footprint.

What Software Options Are Available With the MIRA 7?

The AEON MIRA 7 supports RDWorks software which is ideal for simple designs and quick jobs. For advanced users the machine is fully compatible with LightBurn software which offers more control and features.

If you already work with graphic design software you can import designs directly from CorelDraw AutoCAD and Illustrator using plugins. This makes the workflow smooth and efficient for professional designers.

How Does Multi-Communication Improve Workflow?

The MIRA 7 is built with a high-speed multi-communication system. You can connect the machine using Wi-Fi USB cable or LAN network cable. File transfer is also possible using a USB flash disk.

The machine includes 128MB of memory and an LCD control panel. It supports offline working mode. If the electricity goes down the machine resumes from the stop position after reboot. This protects your work and saves time.

How Does the Adjustable Table and Pass-Through Door Help Cutting Jobs?

The AEON MIRA 7 comes with a ball screw electric up and down table that is stable and precise. The Z-axis height is 150mm adjustable which allows you to work with materials of different thicknesses.

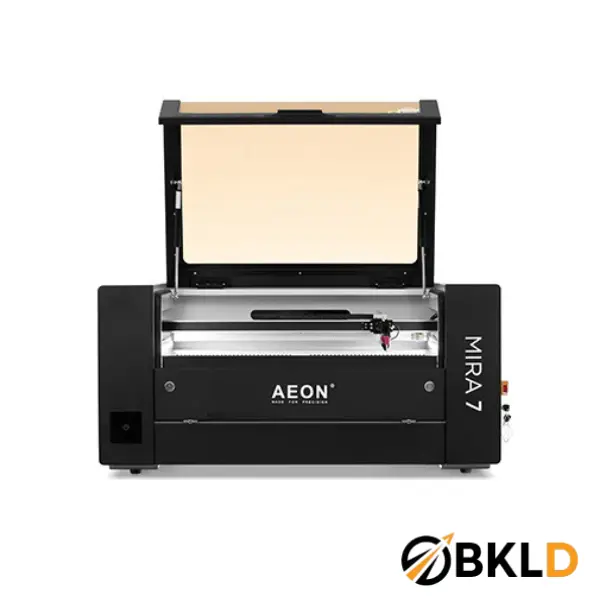

The front pass-through door can be opened to fit longer materials. This is very useful for signs boards and long panels. It expands the type of projects you can handle without upgrading to a larger machine.

Is Autofocus Available and How Does It Work?

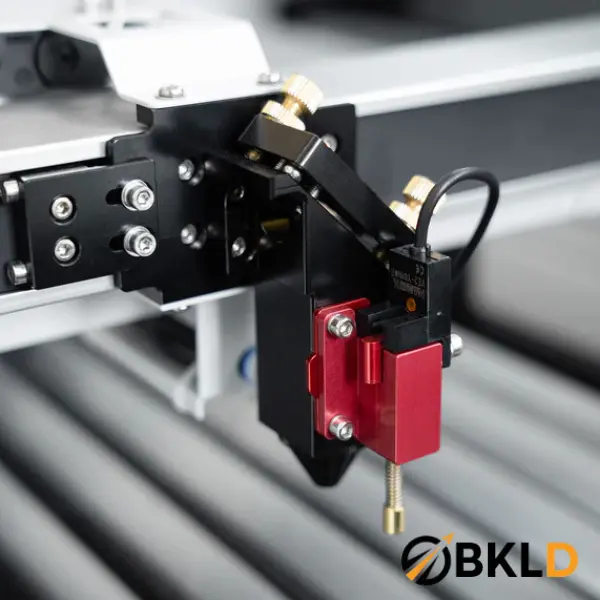

Yes the MIRA 7 supports a newly designed autofocus system. With a single press on the control panel the machine automatically finds the correct focus point.

The autofocus device height is manually adjustable and easy to replace. This feature saves time improves accuracy and reduces setup errors. It is especially helpful for beginners and production work.

What Makes the Body Strong and Modern?

The machine body is made from thick galvanized steel plates which makes it very strong and durable. The powder-type paint finish gives it a modern and premium look.

The built-in LED illumination lights up the working area clearly. This not only improves visibility but also gives the machine a professional appearance suitable for modern studios.

Is the AEON MIRA 7 Worth Buying for Your Business?

If you are looking for a fast reliable and compact CO2 laser cutting and engraving machine the AEON MIRA 7 is an excellent investment. It delivers high speed clean results low maintenance and long working hours.

With multiple laser power options advanced features and professional build quality it meets the needs of both growing businesses and experienced users. This machine is designed to help you work faster smarter and more profitably.
